The Hydro-Action Standard 40 system is built around the Hydro-Action® AP Series individual wastewater treatment plant. This is a self-contained, extended aeration, aerobic treatment facility utilizing the activated sludge process. It can also be used in combination with UV disinfection and chlorination. It also offers a variety of effluent dispersal management options such as drip, pump, and gravity discharge. The Hydro-Action Standard 40 meets the NSF/ANSI 40 set by the National Sanitation Foundation, a testing authority in wastewater treatment.
Wastewater enters the system, either directly or after pretreatment through a septic or trash tank. The aeration compartment injects oxygen into the wastewater, where aerobic bacteria rapidly break down waste, ensuring a chemical-free process. The treated water then moves to the clarification compartment, where solids are separated and recirculated for further treatment, leaving clear, odorless effluent ready for disposal.
Hydro-Action is designed for simplicity and reliability, with minimal moving components and no filters to clean or maintain. The continuous aeration process ensures consistent mixing of aerobic bacteria, effectively treating wastewater without additives.
This warranty exceeds the NSF requirement of two (2) years.
Vacuum-tested fiberglass design, manufactured by a U.S. industry leader with over 35 years of experience.
Fiberglass is lighter than concrete, and our tanks can be nested for transit, making delivery easier.
Simple installation, higher adaptability to land conditions, and economical operation.
Easily installed without heavy equipment and fast and hassle-free maintenance.
We train and certify our distributors to be experts in the field of aerobic wastewater treatment.
Locate the OPS remotely and can be installed as a supplemental unit to existing systems.
Aerobic action instead of chemicals, higher-quality effluent, and flexibility for sensitive land areas.

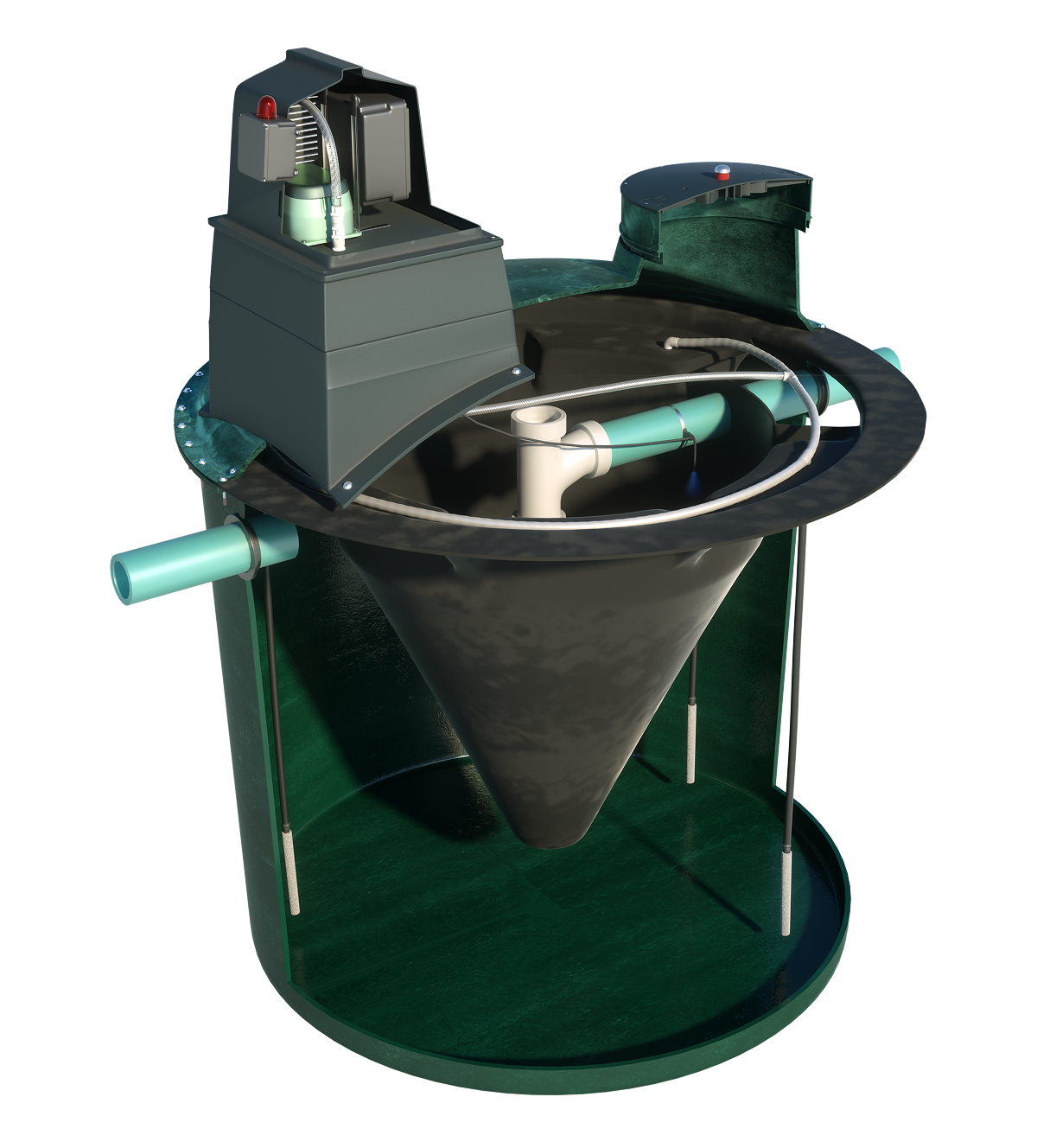

The plant consists of an engineered pre-treatment septic tank and a cylindrically shaped aeration tank with an offset service access, a unique cone shaped clarification compartment and an outlet tee-assembly. Three fine-bubble air diffuser assemblies with hard pipe diffusers and Hydro-Action® efficient air pump are combined to provide effective, efficient, and economical aeration.
The AP Series ATUs are operated by the OPS®. The OPS® integrates the electrical controls, visible and audible alarms and air pump in a protective polyethylene enclosure. The OPS® can be either platform mounted on the plant or remotely located. These features plus the offset access, airline piping, and diffuser assemblies make the plant extremely reliable and easy to service. An optional visible and audible alarm may be added to remotely locate to an area of your choice.
Model | Daily Treatment Capacity | Total System Working Volume | Aerobic Working Volume | Clarifier Working Volume | Treatment Certification | Documents |
|---|---|---|---|---|---|---|
AP-500 | 500 Gallons | 807 Gallons | 614 Gallons | 193 Gallons | NSF 40 | Engineering Package Prints |
LP-500 | 500 Gallons | 840 Gallons | 662 Gallons | 178 Gallons | NSF 40 | Engineering Package Prints |
AP-600 | 600 Gallons | 978 Gallons | 754 Gallons | 224 Gallons | NSF 40 | Engineering Package Prints |
AP-750 | 750 Gallons | 1,137 Gallons | 916 Gallons | 221 Gallons | NSF 40 | Engineering Package Prints |
AP-1000 | 1,000 Gallons | 1,571 Gallons | 1,169 Gallons | 402 Gallons | NSF 40 | Engineering Package Prints |
AP-1500 | 1,500 Gallons | 1,964 Gallons | 1,381 Gallons | 583 Gallons | NSF 40 | Engineering Package Prints |
Ready to upgrade to a reliable and efficient wastewater treatment solution? Contact us today to learn more about the Hydro-Action Standard 40 system and find a certified service provider near you. Ensure your property’s wastewater is managed effectively with our advanced technology.
*The technology used in the Hydro-Action® plant allows it to produce excellent effluent quality, which thereby meets all ANSI\NSF International Standard 40 class I and the Environmental Protection Agency’s requirements of a secondary treatment process. NSF requires that a Class I plant shall be shown to meet EPA secondary treatment guidelines for CBOD5, TSS, and ph. The Hydro-Action® AN Series ATUs satisfy all these requirements.
